Bottle Dispenser

Ultimus

with Dual Inlet Technology

Bottle Top Dispenser with patented dual-inlet functionality to dispense reagents from 2 inlets. High chemical compatibility and smooth dispensing

  • Accurate and jam-free dispensing
  • Rinsing, Dilution, Re-filling and Purging modes with Dual InletTM
  • Recirculation valve technology to prime instrument without loss of reagent
  • Fully Autoclavable at 121° C, 15psi. for 10-15 mins
  • High chemical compatibility with SpringlessValveTM and PTFE piston
  • Optimized user experience with EasyKnob™ and FlexiNozzle™
  • Calibration certificate provided – Conforms to ISO 8655 standards
  • Certifications – ISO 9001, ISO 13485, ISO 17025, CE
See More See Less

Microlit Ultimus is a Bottle Top Dispenser that operates using Dual Inlet™ Technology, Recirculation Valve Technology, and Springless Valve™ Technology. The Dual Inlet Technology, patented in the US and EU, allows for four liquid handling modes: rinsing, dilution, refilling, and purging without dismounting the dispenser.



Liquid Handling Modes



  • Standard Dispensing
    Knob A – Open, Knob B – Closed
    In this mode, the dispenser dispenses the liquid normally into the receiver from the bottle it is mounted on.
  • Purging
    Knob A – Closed, Knob B – Closed
    In this mode, the liquid is recirculated into the same bottle on which the dispenser is mounted. This process removes the air from the dispenser, without wasting any reagent.
  • Dilution/Rinsing/Second Liquid Dispensing
    Knob A – Open, Knob B – Open
    In this mode, the liquid from a second source can be dispensed into the receiver. The second liquid can be distilled water, thus allowing the user to rinse the instrument without dismounting it or diluting the reagent within the receiver.
  • Bottle Refilling
    Knob A – Closed, Knob B – Open
    In this mode, the liquid from a second source can be used to refill the bottle, without dismounting the dispenser.



Precision and Usability in Laboratories



Designed with ergonomics and intuitive handling in mind, it offers excellent chemical compatibility and enables the achievement of precision in practical laboratory environments. Ultimus also features two product innovations: EasyKnob™ and FlexiNozzle™ that enhance its usability.



ULTIMUS Bottletop Dispenser: What’s in the Box?



  1. Dispensing unit
  2. Calibration certificate
  3. Calibration Tool
  4. Bottle Adaptors for all standard reagent bottle neck sizes (28mm – 45mm)
  5. Instruction Manual



Applications: Microlit Ultimus



Microlit Ultimus, a bottle dispenser, is more than just a scientific instrument. It has a wide application in standard laboratory bottle top dispenser environments such as pharmaceuticals, academics, research institutes, healthcare institutions, and the food & beverage industry to dispense solvents, corrosive acids, and other reagents. Ultimus may also be used in the industry as an e-liquid bottle dispenser, essential oils bottle dispenser, or CBD oil bottle dispenser.

With the increasing demand for chemical resistant dispensers and Microlit bottletop diluters and dispensers is expected to go as more industries discover the top-notch quality, high functionality, and assured improvement in efficiency that the bottle dispenser offers.

Features

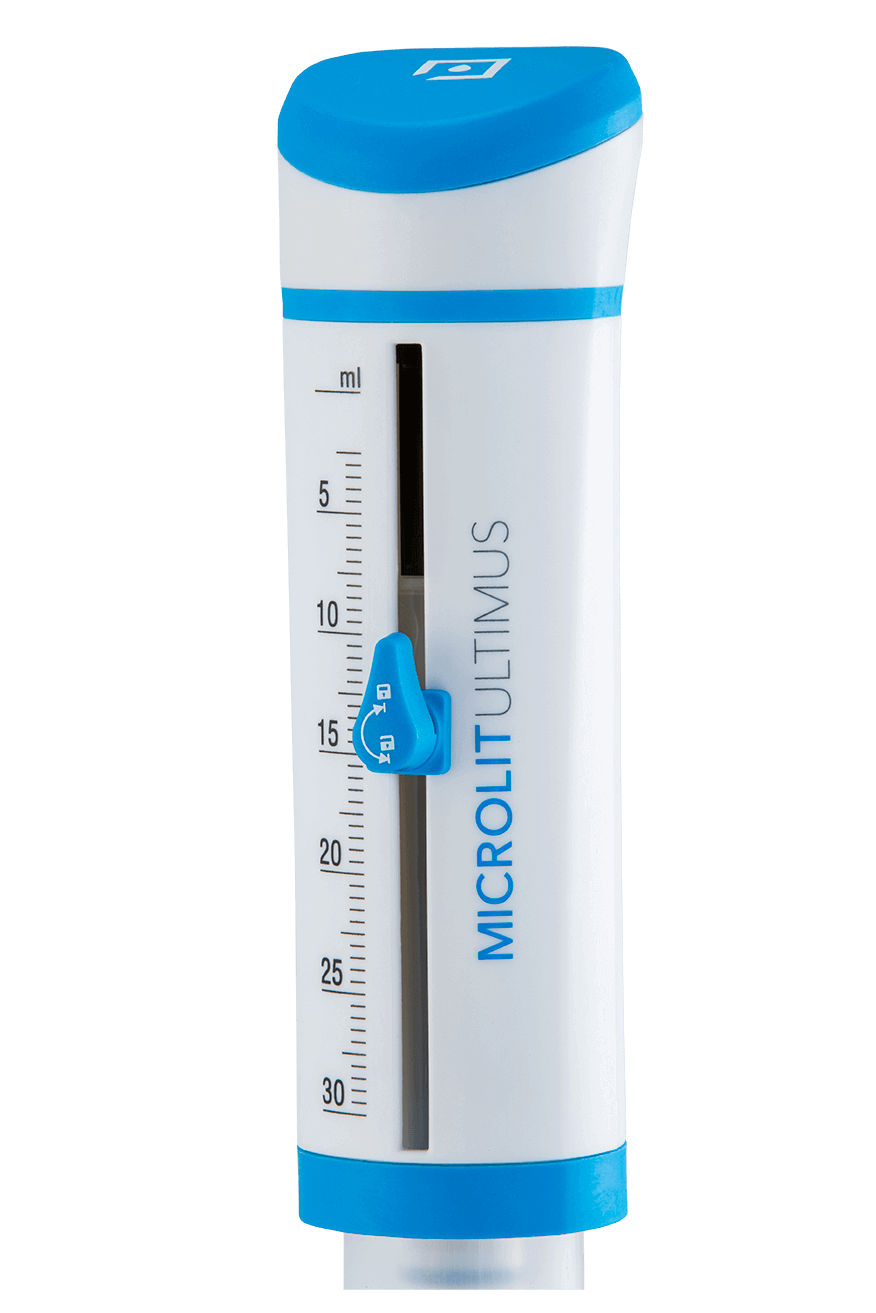

Change Volume with EasyKnob™

Change Volume with EasyKnob™

EasyKnob™ is a specially designed volume adjustment knob that allows 180° rotation for easy and effortless volume setting.

Move Effortlessly with a PTFE Piston

Move Effortlessly with a PTFE Piston

A PTFE Piston with an ETP O-Ring facilitates smooth and effortless movement and ensures high chemical compatibility.

Forget Dismounting with Dual Inlet™

Forget Dismounting with Dual Inlet™

MICROLIT ULTIMUS is equipped with an awardwinning patented technology, Dual Inlet™, that enables 4 liquid handling modes without dismounting the dispenser.

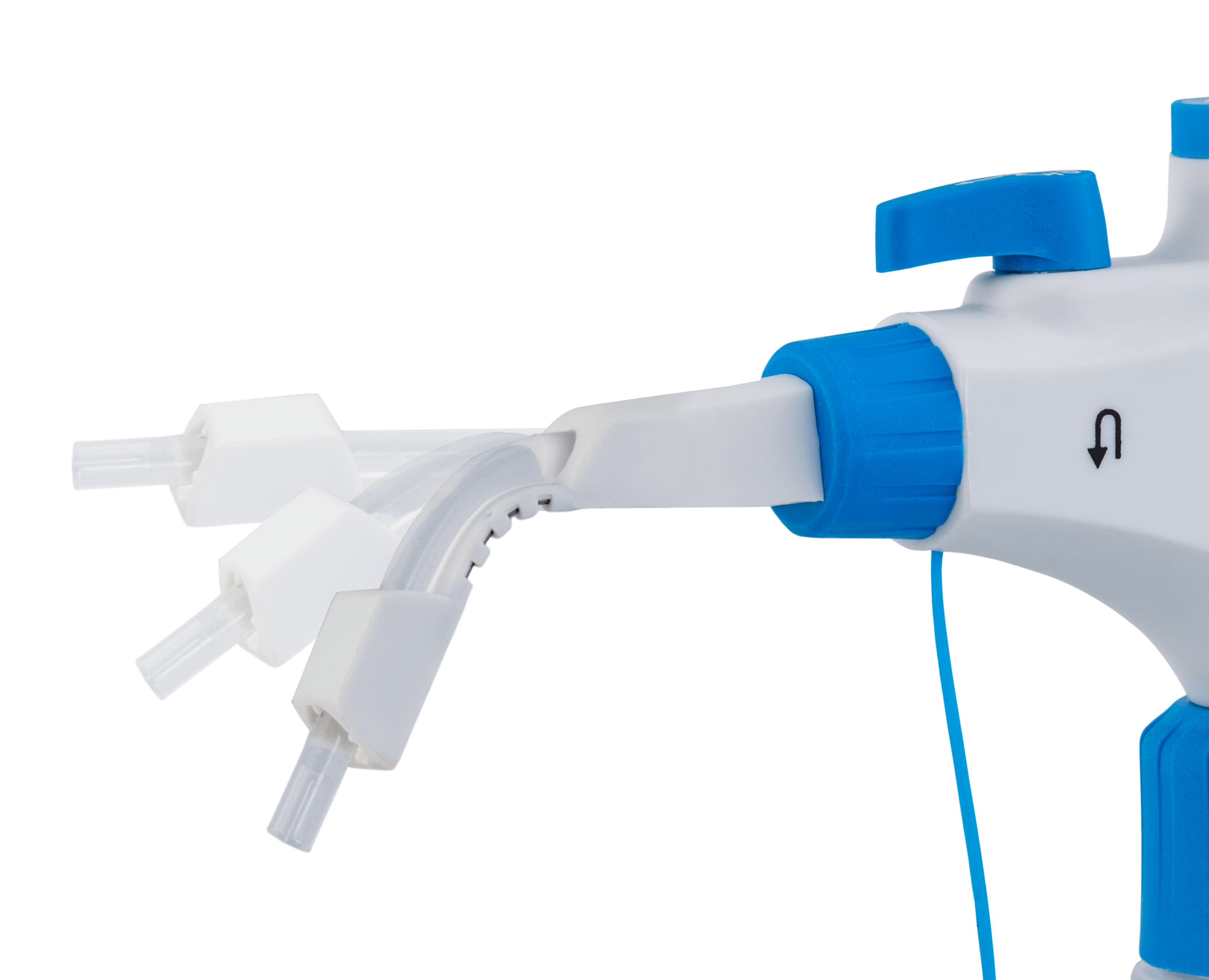

Dispense Easily with FlexiNozzle™

Dispense Easily with FlexiNozzle™

FlexiNozzle™ is an adjustable delivery nozzle. It offers a high degree of flexibility, facilitating easy dispensing in demanding laboratory conditions.

Work Flexibly with a 360° Adapter

Work Flexibly with a 360° Adapter

A specially designed Adapter allows 360° rotation, facilitating complete work flexibility.

View Product Guide Download Catalog Download Instruction Manual Download Compatibility Chart
Model No. Description Vol. Range Increment Accuracy CV
+% +ml +% +ml
ULT-2.5 Ultimus Bottle Top  Dispenser 0.25-2.5ml 0.25-2.5ml 0.05ml 0.5 0.0125 0.2 0.005
ULT-5 Ultimus Bottle Top Dispenser 0.5-5ml 0.05-5ml 0.1ml 0.5 0.025 0.2 0.01
ULT-10 Ultimus Bottle Top Dispenser 1-10ml 1-10ml 0.2ml 0.5 0.05 0.1 0.01
ULT-30 Ultimus Bottle Top Dispenser 2.5-30ml 2.5-30ml 0.5ml 0.5 0.15 0.1 0.03
ULT-60 Ultimus Bottle Top Dispenser 5-60ml 5-60ml 1.0ml 0.5 0.3 0.1 0.06
ULT-100 Ultimus Bottle Top Dispenser 10-100ml 10-100ml 2.0ml 0.5 0.5 0.1 0.1



The error limits (Accuracy and Coefficient of Variation) mentioned above are in accordance
with the nominal capacity (or maximum volume) indicated on the instrument. These are obtained by using the instrument with distilled water at equilibrium, the ambient temperature of 20 °C while operating it smoothly and steadily. The error limits are in accordance with DIN EN ISO 8655-5.

Product FAQs

Purging or priming is a method to remove air bubbles from the barrel. To prime the piston, gently pull it up and then rapidly push down until it hits the base. Repeat this process at least five times. If the problem persists, examine the telescopic or inlet tube fitment.
Microlit bottle dispensers are appropriate with a wide range of reagents/chemicals because the materials used in the dispenser's wetted components (PTFE, Borosilicate glass, FEP, PP) do not react with the most common reagents. For any reagent compatibility please refer to our Chemical Compatibility Chart
Yes, the Microlit dispensers are completely autoclavable at 121°C for 15-20 minutes at 15 psi. But, don't autoclave the dispenser unless it has been disassembled. Before autoclaving the Microlit dispenser, disassemble the piston and shaft. The volume adjustment knob must be kept unlocked. In the end, after autoclaving, it is necessary to re-calibrate. For the correct and detailed autoclaving procedure, please see the instruction manual.
Set the ml dispenser to the appropriate volume and dispense distilled water at least five times. Use an analytical or electronic balance to measure the dispensed liquid. The dispenser is calibrated if the mean and CV readings fall within the acceptable ISO limits (see specs chart). If not, please use the re-calibration procedure described in the instruction manual.
We advise rinsing the Microlit dispenser with deionized or distilled water before and after usage. The product instruction manual contains detailed instructions for maintaining and cleaning the Microlit dispenser.
We recommend maintaining the temperature of the instrument and the reagent between +15 C to +40 C.
The Microlit dispenser comes with five sets of adaptors ranging in size from 28, 32, 38, 40 to 45mm, facilitating it to be mounted on any standard reagent glass bottle.
For the second bottle, an additional set of four reservoir covers are provided in the sizes 32, 36, 40, and 45 mm.
Yes, these acid bottle top dispensers are compatible with stronger acids because the dispenser's wetted components (PTFE, PFA, Borosilicate glass, Zirconia, and FEP) are inert and do not react with them. However, it is highly suggested not to leave the instrument mounted over strong acids, as this can lead to discoloration or softening of the external material but will have no effect on its functionality. Please refer to our Chemical Compatibility Chart
Yes, the dispenser can serve as an essential oil dispenser. However, we suggest that you use fluids with a maximum viscosity of 500cP.
The dispenser may not be able to aspirate the liquid from the second inlet tube if it is loose. To fix this, unscrew the second inlet and reassemble. Please refer to the instruction manual for the detailed assembling of the second inlet.
