EASYAID Electronic Pipette Filler
Electronic pipette filling device with Solenoid Valve and Force Touch Technology.
- In-line Membrane Filter to prevent aerosol contamination
- Integrated Hall Sensors for Force Touch Technology
- Solenoid Valve to fill/dispenser serological Pipette accurately
- Universal Silicon Collet Adapter to hold any brand pipette firmly
- Large easy-to-read monochrome display screen
- Unique Gravity Dispense Mode
- Programmed Volume Selection for Smooth Functioning
- Fully Autoclavable at 121 °C temperature and 15 psi for a duration of 10-15 minutes (Collet Assembly and In-line Membrane Filter Only)

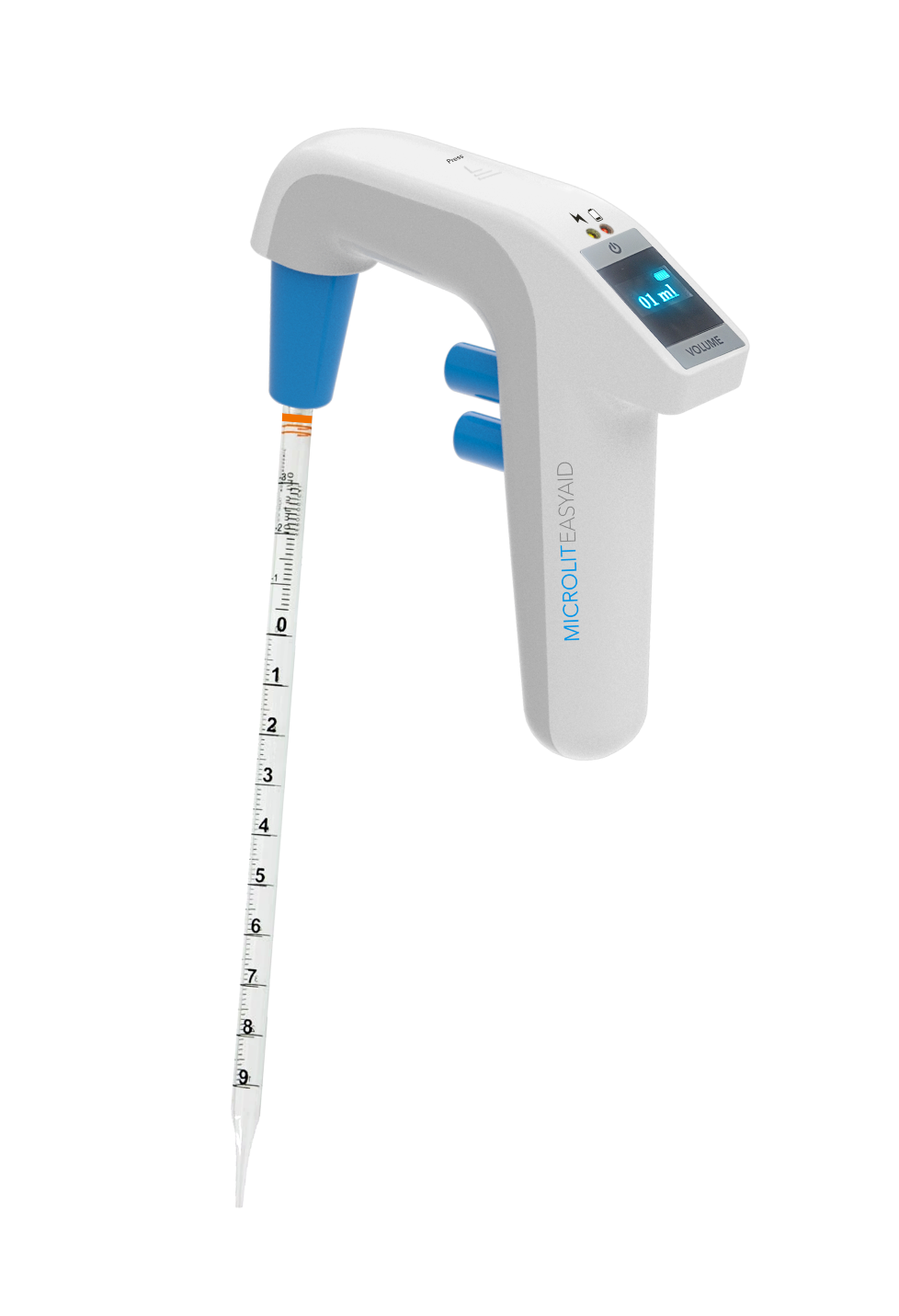

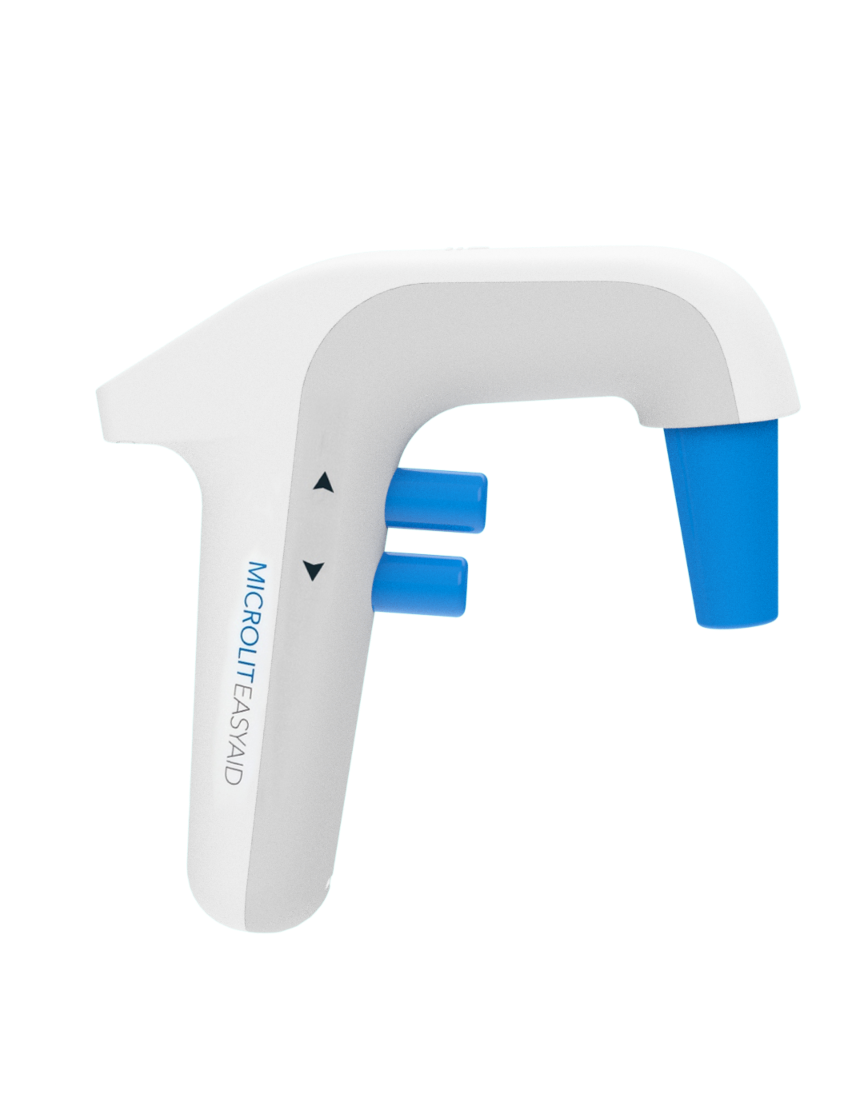

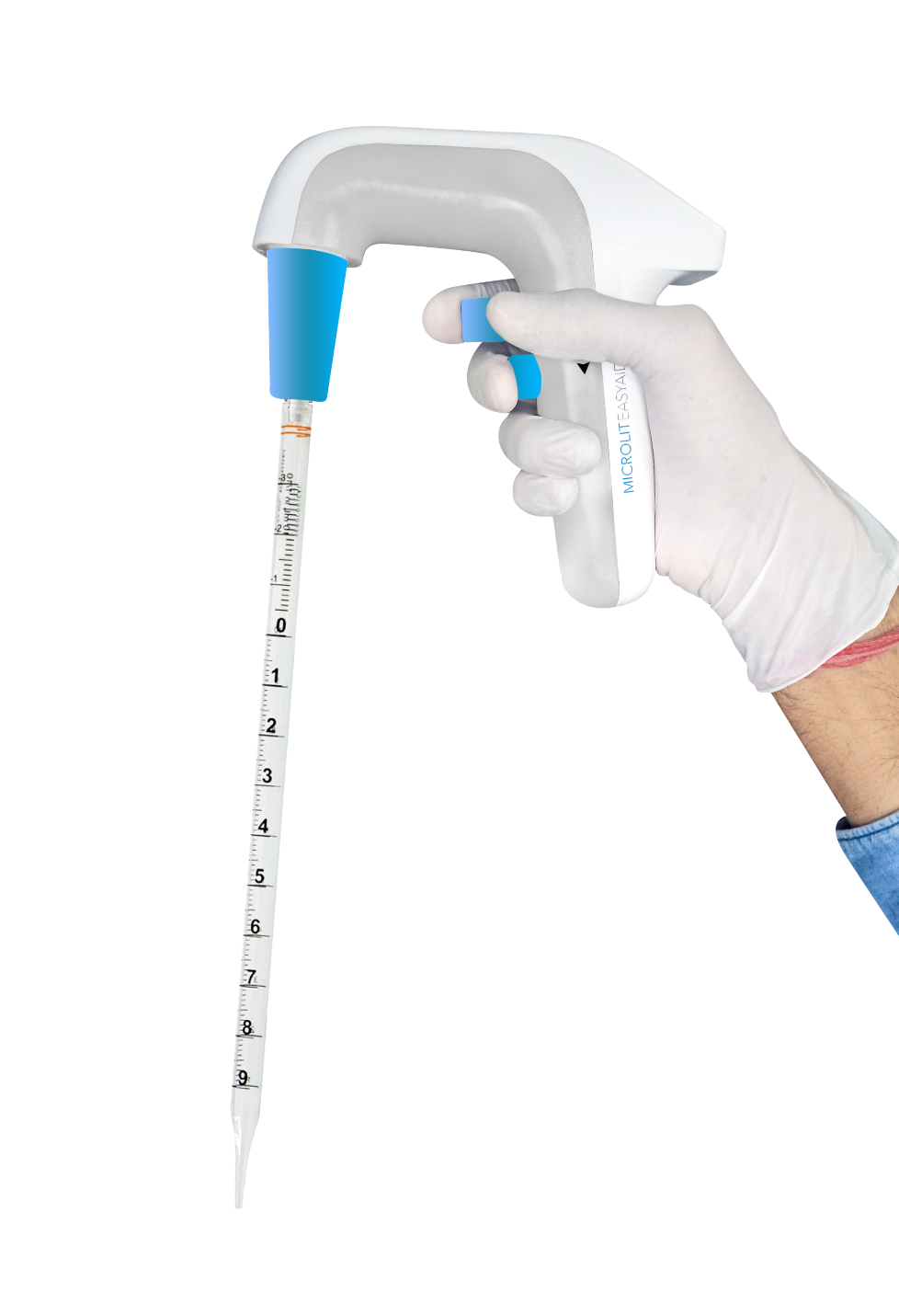

Microlit EasyAid Electronic Pipette Filler, an advanced Electronic Pipette Filling Device, introduces a new level of precision and control in pipetting, utilizing advanced Hall Sensors and Force Touch Technology along with a Solenoid Valve. This state-of-the-art tool empowers researchers to achieve greater accuracy, accelerating scientific research. It is compatible with all standard pipettes ranging from 0.1 ml to 100 ml, ensuring versatility and efficiency in the lab. The EasyAid Pipette Controller is a key component of this Automated Pipette Filler, enhancing its functionality and user experience by providing seamless operation across a wide range of liquid handling applications.
EasyAid Electronic Pipette Filler: What’s in the box?
- EASYAID Pipette Filler
- 5V USB Charging Adapter
- Pipette Filler Stand
Use of Hall Sensors for Force Touch Technology
The plunger buttons are equipped with magnets that engage with Hall sensors on the PCB, allowing precise control over the aspiration and dispensing speed in an electronic pipette filler.
Usage of Solenoid Valve
The Solenoid Valve system enables lab scientists to fill and dispense serological pipettes with precision, significantly improving the efficiency of their experiments.
In-Line Membrane Filter
A PTFE Hydrophobic In-Line Membrane Filter (0.2 microns) safeguards against aerosol contamination and accidental liquid entry.
Universal Silicon Collet Adapter
The universal silicone adapter, featuring internal knurling, securely accommodates glass or plastic pipettes ranging from 1 ml to 100 ml, ensuring a firm grip during various liquid handling tasks.
1-Inch Tempered OLED Screen
The large, easy-to-read monochrome display screen is designed to withstand accidental impacts, scratches, and chemical spills, providing an added layer of protection.
Programmed Volume Selection for Smooth Functioning
Users can select the serological pipette capacity to adjust the fill and dispense speed range, with options including 1 ml, 2 ml, 5 ml, 10 ml, 25 ml, 50 ml, and 100 ml.
| Model No. | Description |
|---|---|
| EASYAID-B | Grey and White Body – Blue Collet and Plunger |
| EASYAID-GR | Grey and White Body – Green Collet and Plunger |
| EASYAID-V | Grey and White Body – Voilet Collet and Plunger |
| EASYAID-R | Grey and White Body – Red Collet and Plunger |
| EASYAID-G | Grey and White Body – Grey Collet and Plunger |
